PVC Profiles

System 700

With 7 chambers and a width of 81.5mm, this system has modern cube design. This latest design follows the trends and due to its modern design and availability in several colors it easily fits into any project. The cube look is easily noticeable and makes the room more modern and luxurious. It is durable and resistant to atmospheric influences, while also being easy to maintain. Combined with a good gasket and low-emission glass, it has good thermal isolation ability, and saves on heating and cooling up to 50%.

Basic characteristics:

  • Number of chambers: 7
  • Profile width: 81,5mm
  • Heat transfer coefficient: 0,89 W/m²k
  • Glass: Double layered / Three-layer
  • Gasket: 2

Lamination:

Golden Oak

Mahogany

Anthracite Grey

Walnut

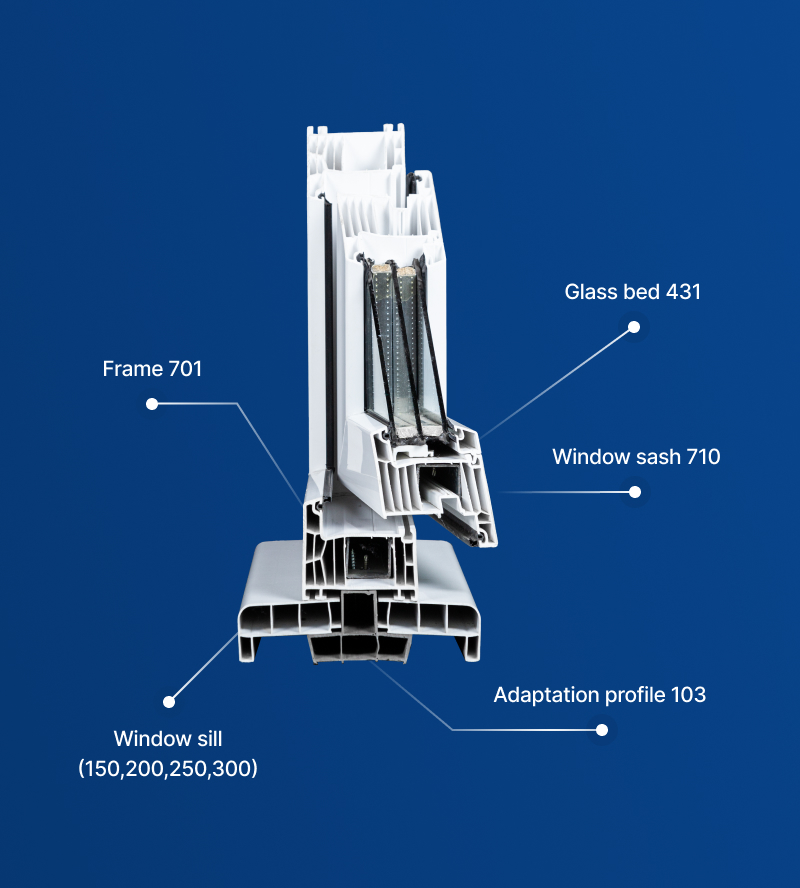

Technical drawings:

Frame 701

Sash 710

Door Sash 711

Mullion 720

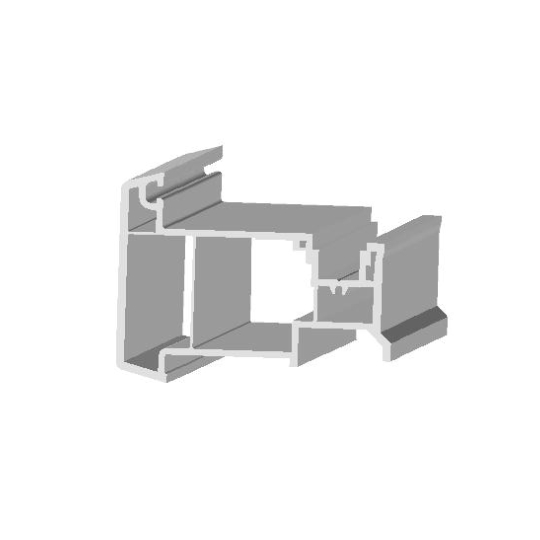

Sash Adapting 721

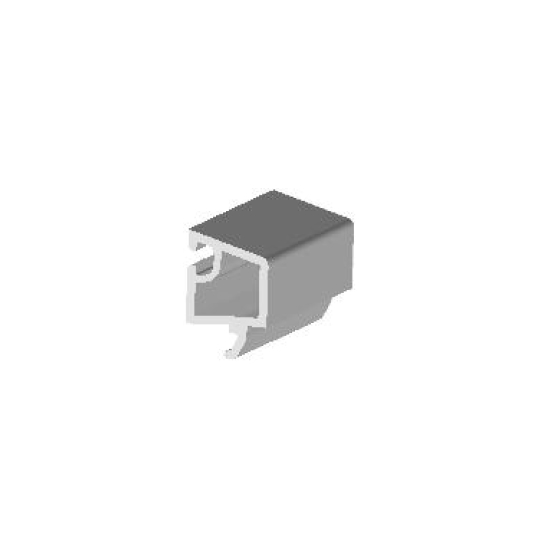

Glass Bed 431

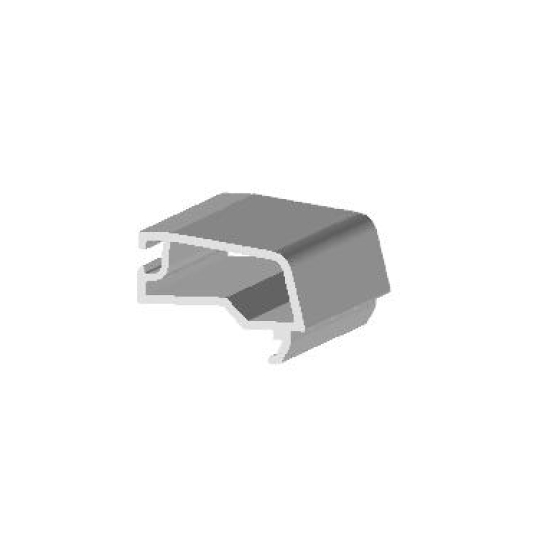

Glass Bed 730

Technical drawings for window sills:
150mm
200mm
250mm
350mm
101
102
103
104
Note: For additional parts for production of PVC windows and doors, please look at our price list.
