PVC Profiles

System 400

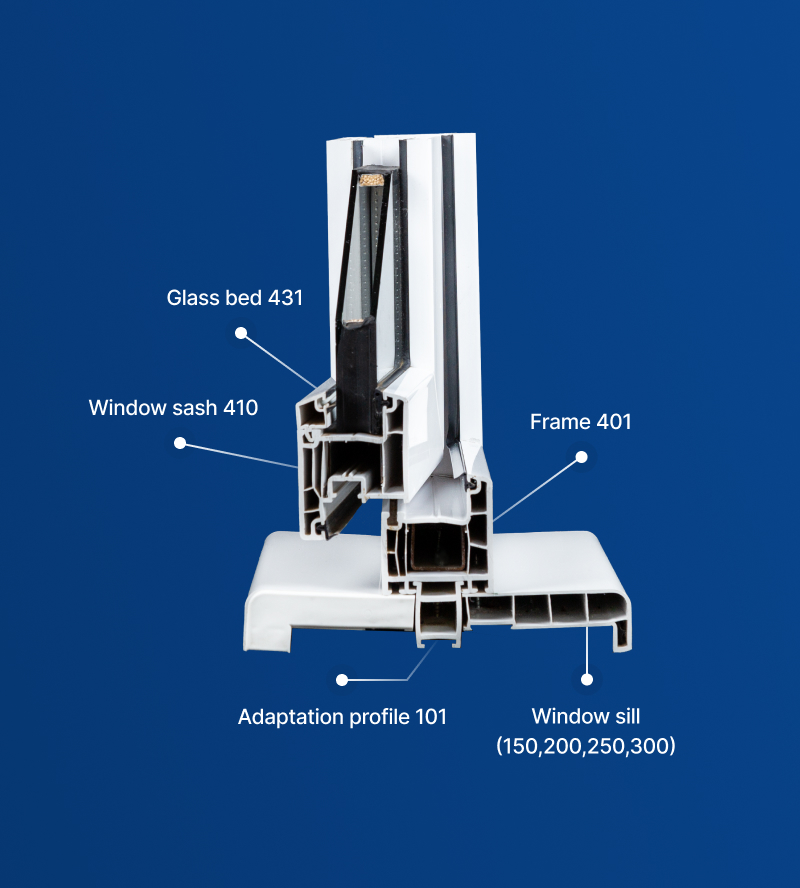

With 4 chambers and a width of 61mm, this system is economical. The simple cube look fits perfectly into any residential or commercial building. It is durable and resistant to atmospheric influences, while also being easy to maintain. Combined with a good gasket and low-emission glass, it has good thermal isolation ability and saves on
heating and cooling.

Basic characteristics:

  • Number of chambers: 4
  • Profile width: 61mm
  • Heat transfer coefficient: 1,31 W/m²k
  • Glass: Double layered
  • Gasket: 2

Technical drawings:

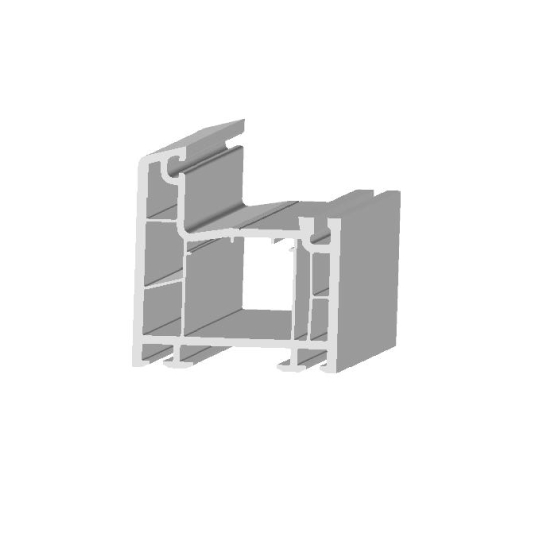

Frame 401

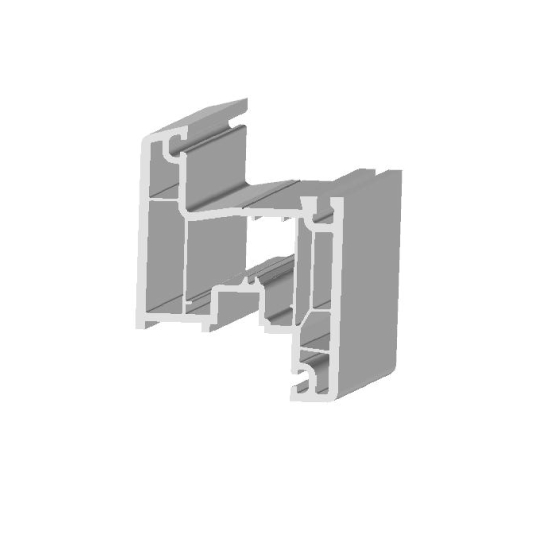

Sash 410

Door Sash 411

Sash Adapting 421

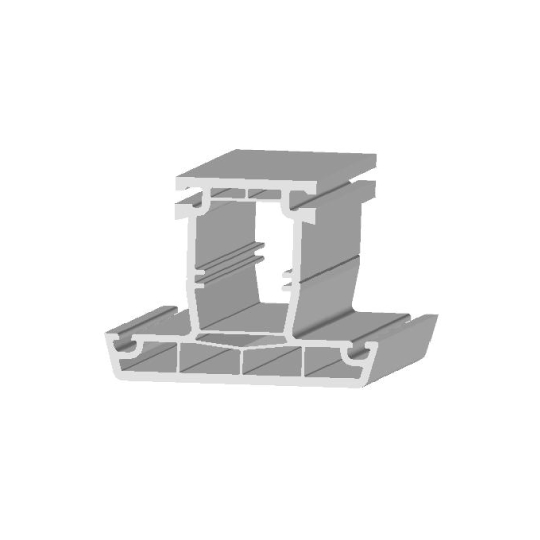

Mullion 420

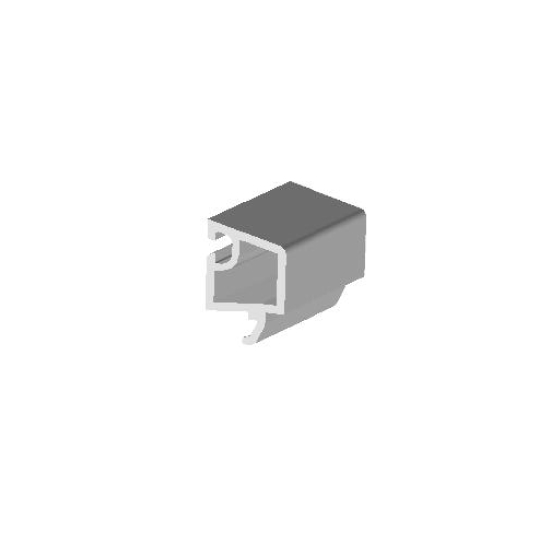

Glass Bed 431

Technical drawings for window sills:
150mm
200mm
250mm
350mm
101
102
103
104
Note: For additional parts for production of PVC windows and doors, please look at our price list.
