PVC Profiles

System 300

With 3 chambers and a width of 54mm, this system is economical and has a simple design that makes it compact for all kinds of projects. Due to its narrow design, it is perfect for narrow walls or containers. It is durable and resistant to atmospheric influences, while also being easy to maintain. Combined with a good gasket and low-emission glass, it has good thermal isolation ability and saves on heating and cooling.

Basic characteristics:

  • Number of chambers: 3
  • Profile width: 54mm
  • Heat transfer coefficient: 1,37 W/m²k
  • Glass: Double layered
  • Gasket: 2

Technical drawings:

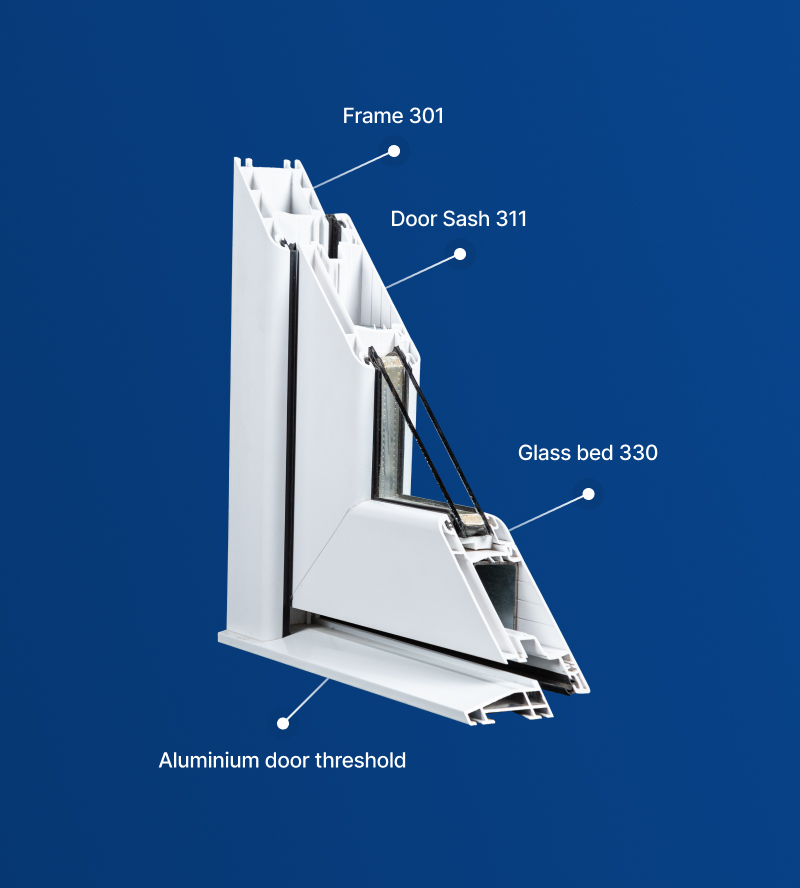

Frame 301

Frame 810

Sash 310

Door Sash 311

Sash Adapting 321

Mullion 320

Glass Bed 330

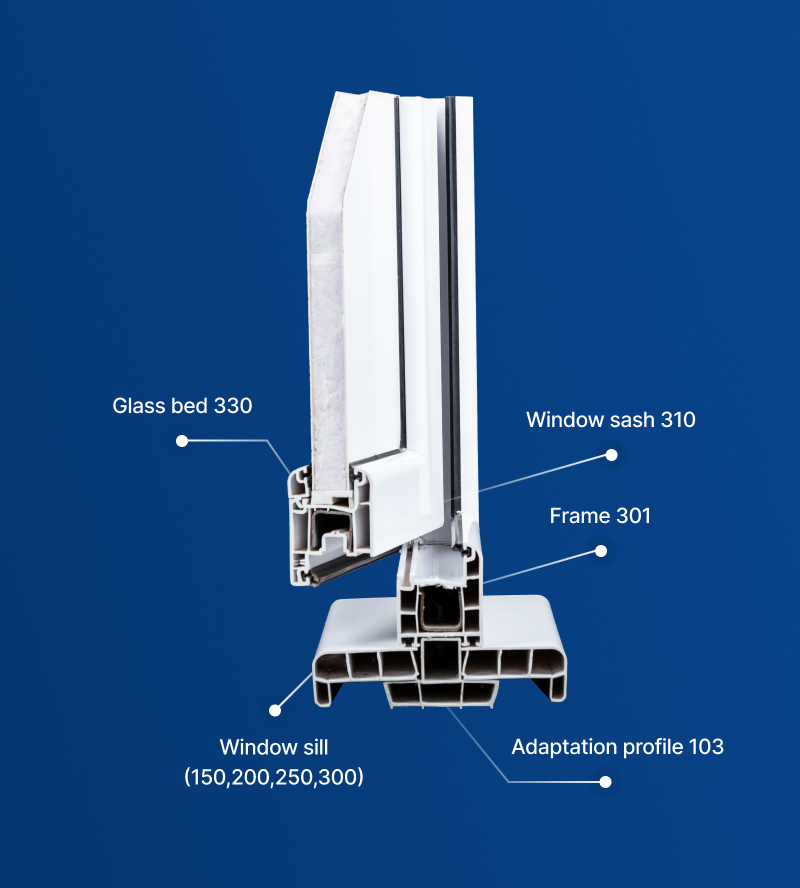

Technical drawings for window sills:
150mm
200mm
250mm
350mm
101
102
103
104
Note: For additional parts for production of PVC windows and doors, please look at our price list.
