PVC Profiles

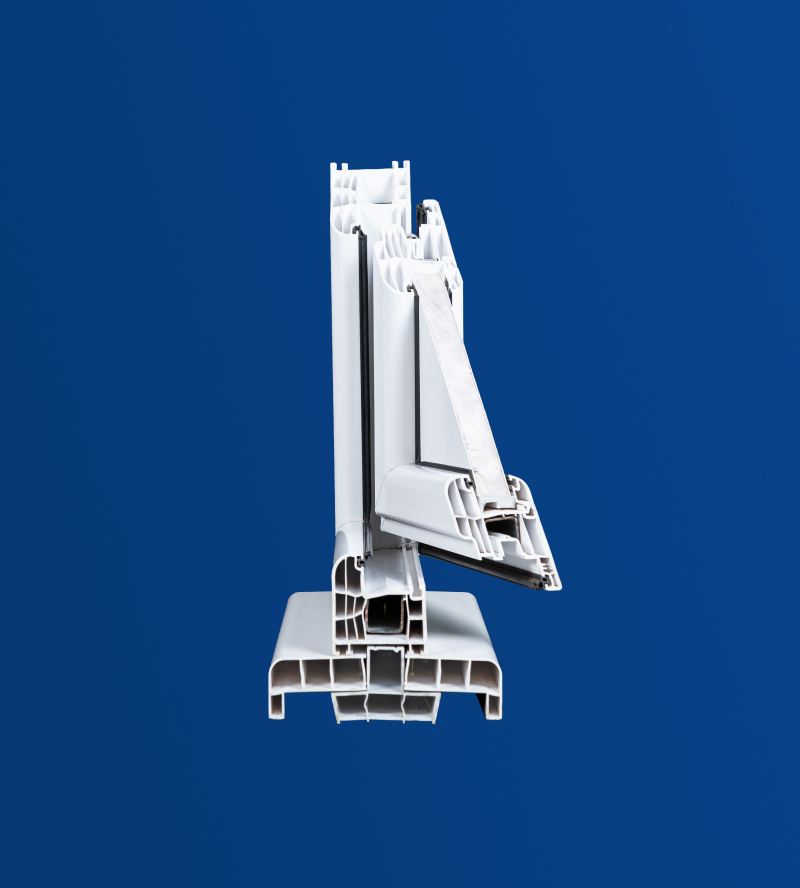

System 500

With 5 chambers and a width of 64.5mm, this system is both elegant looking and economical. The elegant, rounded look will not go unnoticed in any residential or commercial building. It is durable and resistant to atmospheric influences, while also being easy to maintain. Combined with a good gasket and low-emission glass, it has good thermal isolation ability and saves on heating and cooling up to 50%.

Basic characteristics:

  • Number of chambers: 5
  • Profile width: 64,5mm
  • Heat transfer coefficient: 1,22 W/m²k
  • Glass: Double layered
  • Gasket: 2

Technical drawings:

Frame 501

Frame 503

Sash 510

Door Sash 511

Sash Adapting 321

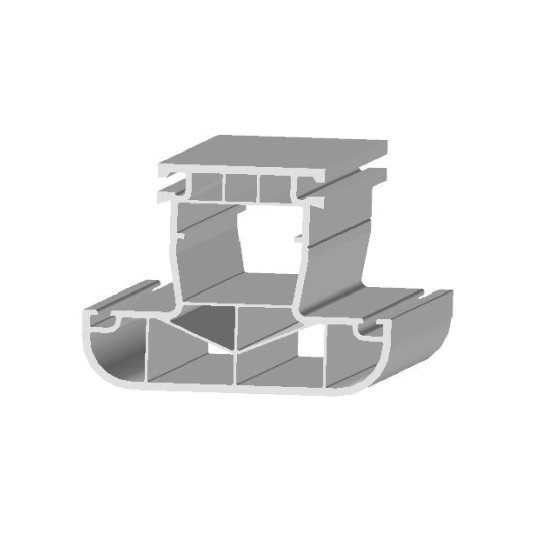

Mullion 520

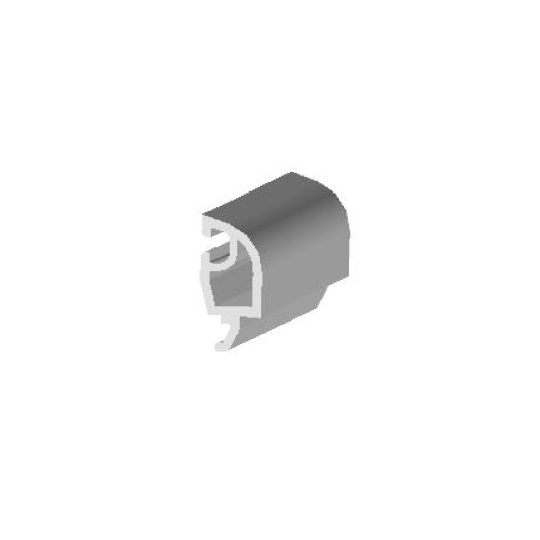

Glass Bed 330

Technical drawings for window sills:

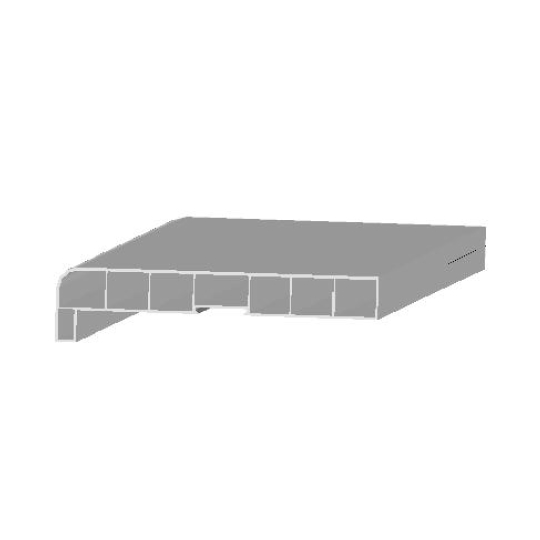

150mm
200mm
250mm
350mm

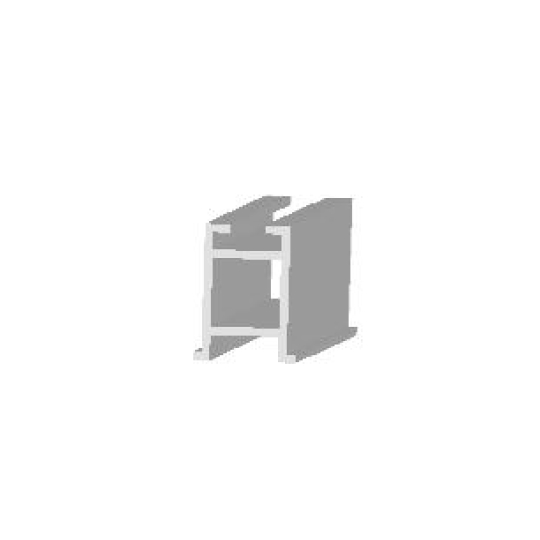

101

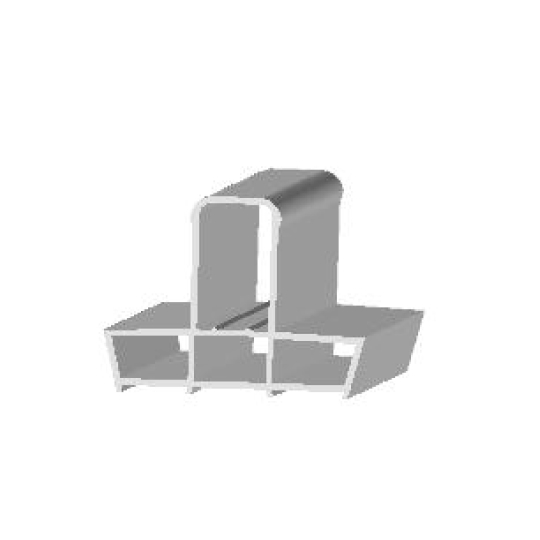

102
103
104
Note: For additional parts for production of PVC windows and doors, please look at our price list.
